Installing the Optional Color Wheel

The projector comes with a four-segment color wheel installed. An additional six-segment color wheel

is optional. To replace the color wheel (located under the lamp cover adjacent to lamp 1) refer to the

following guide.

Note:

Wait until the lamp house and the color wheel cool off.

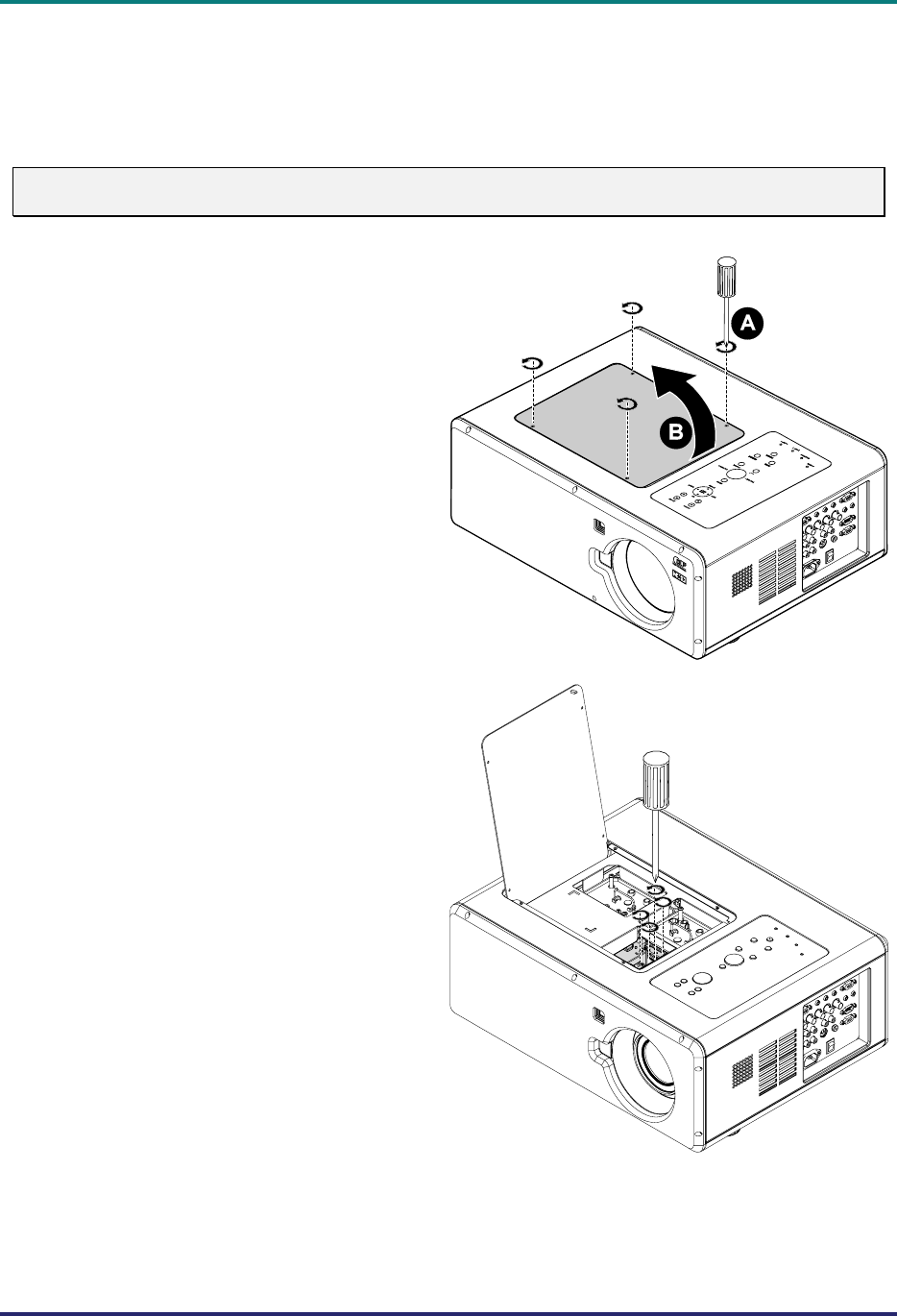

Remove the four screws (A) on the

lamp cover.

Lift the lamp cover in the direction of

the arrow (B).

Unscrew the retaining screws (x 4) on

the four-segment color wheel.

– 18 –
