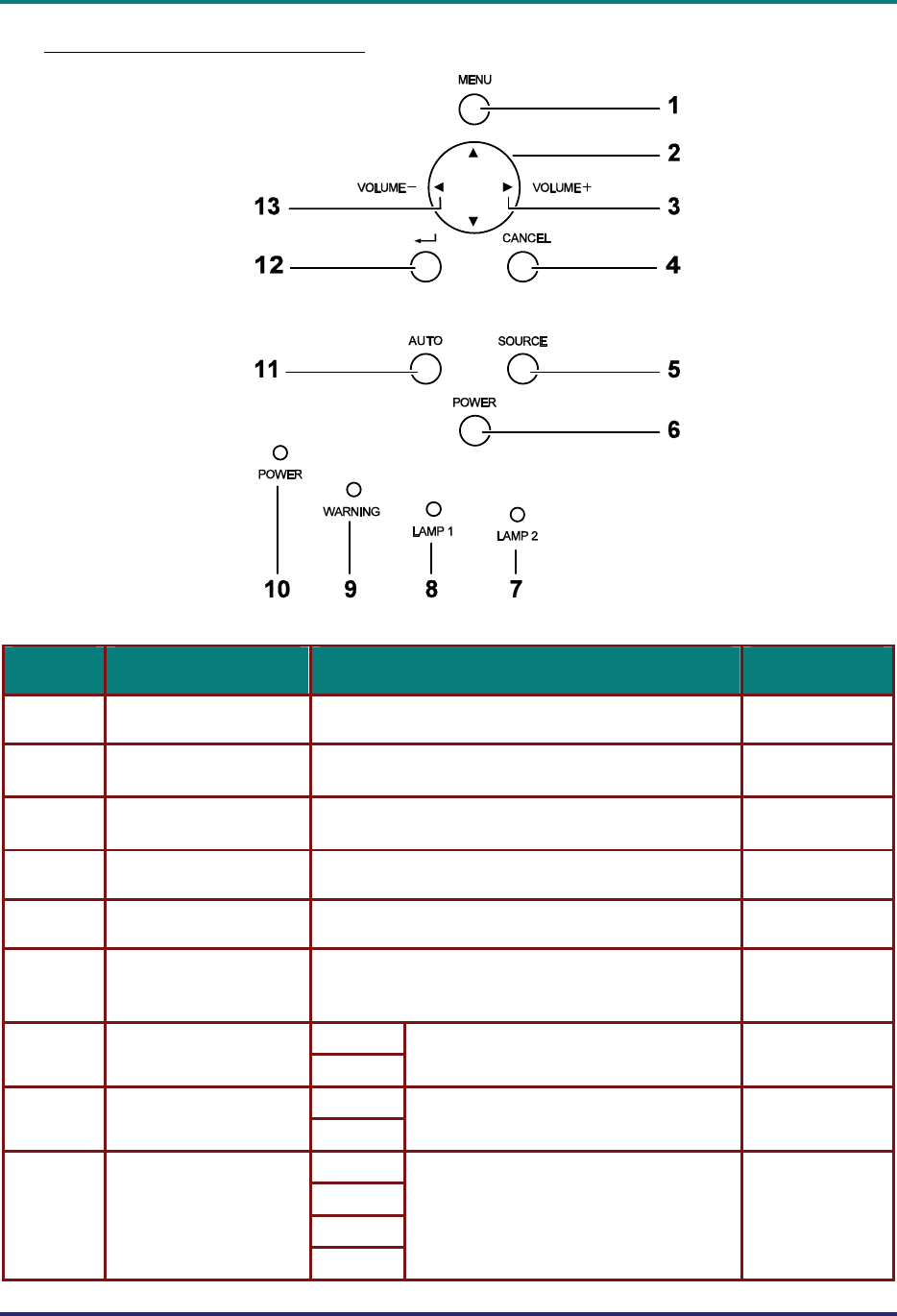

OSD Controls and Status LEDs

ITEM LABEL DESCRIPTION SEE PAGE:

1.

MENU Open / Close the OSD

47

2.

UP/ DOWN/ LEFT/

RIGHT BUTTONS

Navigate and change settings in the OSD

47

3.

RIGHT CURSOR/

VOLUME INCREASE

Increase volume

34

4.

CANCEL Exit the On-Screen Display (OSD)

47

5.

SOURCE Detects the input device

27

6.

POWER

Turn the projector on or off (main power switch

must be turned on first).

Press to place the projector in standby mode.

25

Green

7.

LAMP 2 (LED)

Flashing

See Indicator Messages

87

Green

8.

LAMP 1 (LED)

Flashing

See Indicator Messages

87

Green

Red

Orange

9.

WARNING (LED)

Flashing

See Indicator Messages

87

– 6 –
