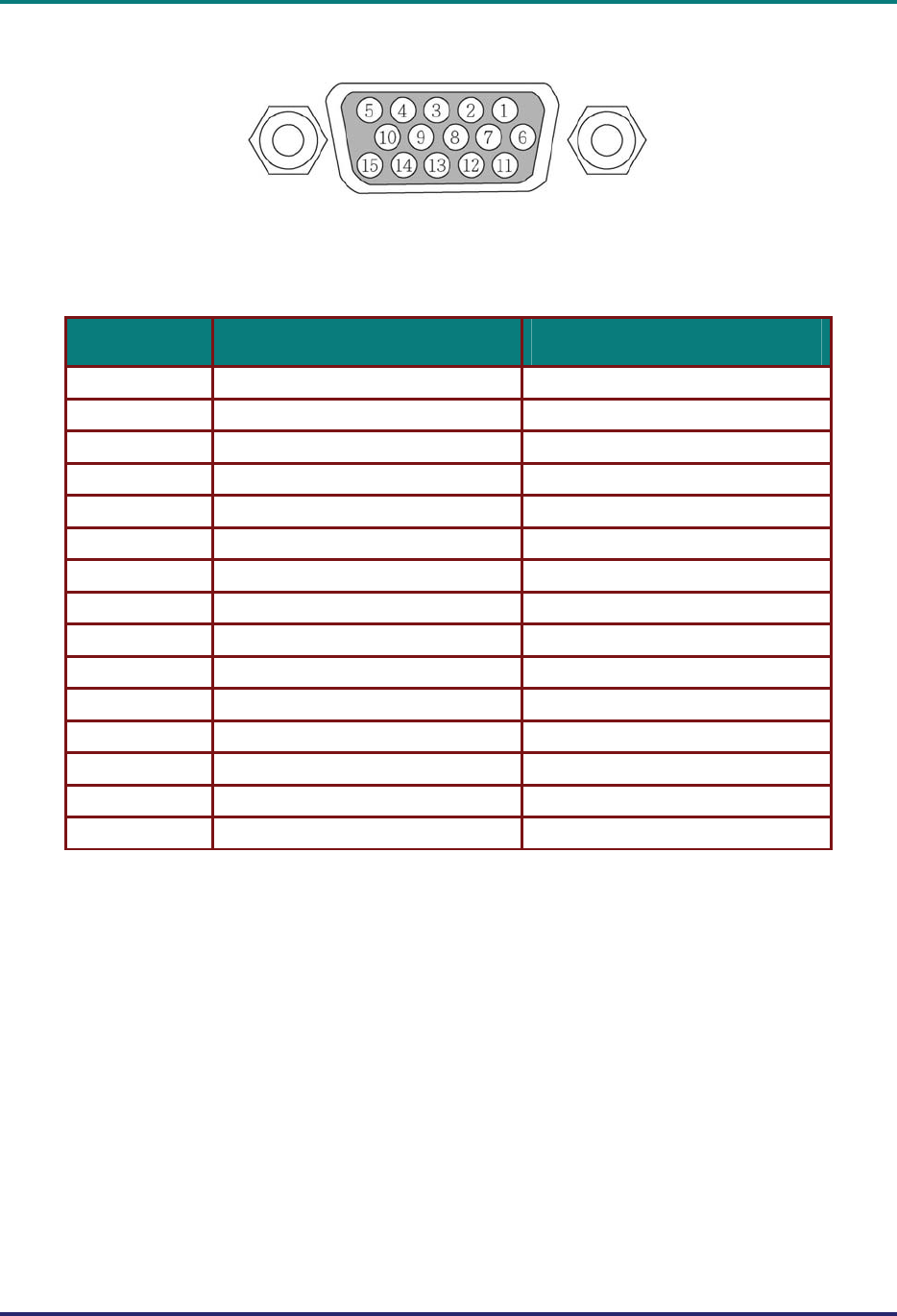

Pin Assignments of Mini D-Sub 15 Pin Input Connector

Signal Levels

Video signal: 0.7Vp-p (Analog)

Sync signal: TTL level

PIN NUMBER RGB SIGNAL (ANALOG) YCBCR SIGNAL

1 Red Cr

2 Green or Sync on Green Y

3 Blue Cb

4 Ground

5 Ground

6 Red Ground Cr Ground

7 Green Ground Y Ground

8 Blue Ground Cb Ground

9 No Connection

10 Sync Signal Ground

11 No Connection

12 Bi-directional DATA (SDA)

13 Horizontal Sync or Composite Sync

14 Vertical Sync

15 Data Clock

– 95 –
